Atlas Copco Oil Free Compressor SF8+ -22+ With Modular Design

Brand Name : Atlas

Model Number : SF8+-22+

Certification : CE,ISO

Place of Origin : China

MOQ : 1 pcs

Price : be negotiabled

Payment Terms : T/T, Western Union, L/C, D/P, D/A

Supply Ability : 100pcs per month

Delivery Time : 7-30days

Packaging Details : Atlas standard packing

Noise : 63-73 DB

Working Pressure : 8-10 Bar

Application : Industrial/Commercial

Type : Oil Free

Cooling Mode : Air Cooling

Feature : Energy saving

Oem : Offered

FF Available : Built-in dry available

Contact Now

ATLAS SF+ OIL-FREE AIR COMPRESSOR

SF 8+-22+

Click to open the catalog:SF1-22_antwerp_leaflet_EN_2935084448.pdf

COST-EFFICIENT,HIGH-QUALITY AIR
With its state-of-the-art oil-free compressor technologies such as screw, tooth, centrifugal,reciprocating and scroll, Atlas Copco provides the right solutions for your specific needs.As oil-free compressed air is a prerequisite for many manufacturing processes, we ensure consistent oil-free air by preventing oil from entering your compressed air system. The SF+ range boasts the high-end Elektronikon® controller.
Reliable and compact, with innovative technology, high energy efficiency and uncompromisingly high quality to meet your needs.

SF8+-22+: Flexible Modular Design
The SF8+-22+ scroll air compressor features an efficient and flexible modular system design, integrating 2 to 4 compression modules into a single chassis and using the Elektronikon® controller continuously monitors the operating status of each compressor rotor and automatically starts/stops the rotors according to the air demand, ensuring that the compressed air output meets your needs. In addition, ideal compressed air quality and a user-friendly design guarantee a superior production process.

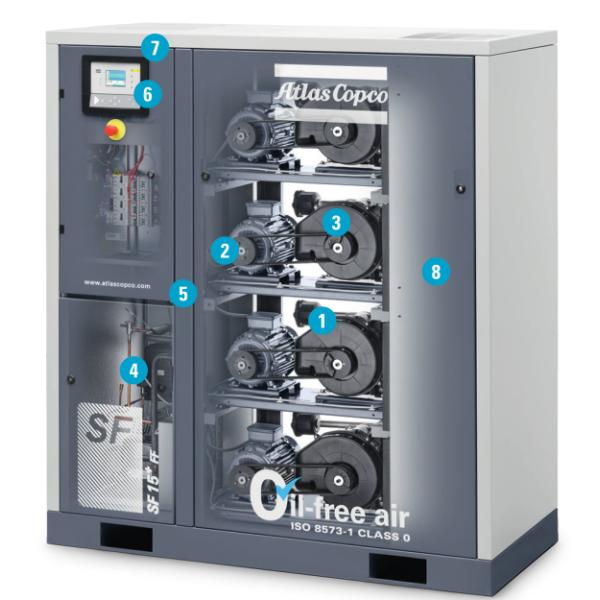

Atlas Copco Oil Free Compressor SF8+ -22+ With Modular Design
1.Air inlet filter
High efficiency paper cartridge air inlet filter eliminating dust and particles down to 1µm.
2.IP55 Class F
Totally enclosed & air-cooled IP55 Class F motors.
3.High efficiency scroll element
Air-cooled scroll compressor elements with 8 and 10 bar variants, offering proven durability and reliability in operation, in addition to superior efficiency.
Atlas Copco Oil Free Compressor SF8+ -22+ With Modular Design
4.Refrigerant dryer
Compact & optimized integrated refrigerant dryer ensuring the delivery of dry air,preventing rust and corrosion in the installed compressed air network.

Atlas Copco Oil Free Compressor SF8+ -22+ With Modular Design

5.Silent canopy
Thanks to the low-noise scroll element, optimized super-silent fan and sound-insulated canopy, best in class noise levels possible are achieved.
6.Elektronikon® Mk5 Graphic
While running the VFT algorithm, the Elektronikon® Mk5 Graphic matches the required air demand, eliminating unload power consumption.
Atlas Copco Oil Free Compressor SF8+ -22+ With Modular Design
7.Optimized cooler & piping
The air cooler is finetuned for improved performance, while the use of aluminum & stainless steel pipes improve reliability over lifetime and assure the high quality of compressed air.
8.Smart design
Outstanding user-friendly design, with safety in operation & ease of serviceability in mind.
- SF Duplex
• Duplex set-up with two cubicles,one/two main modules and one/two modules as back-up.
• Elektronikon® regulates each set of compressor modules via an integrated central control system.
• Enclosed in sound-insulated bodywork.
TECHNICAL SPECIFICATIONS
Type Maximum working pressure FAD Motor power Noise Weight
bar(e) psig I/s m³/min cfm kW hp dB(A) kg lbs
SF8+-22+(50/60Hz)
SF8+ 8 116 13.4 0.80 28.4 8 10 63 387 853
10 145 11.3 0.68 23.9 8 10 63 387 853
SF11+ 8 116 21.1 1.27 44.7 11 15 63 442 974
10 145 15.0 0.90 31.8 11 15 63 442 974
SF15+ 8 116 27.2 1.63 57.6 15 20 63 583 1285
10 145 22.6 1.36 47.8 15 20 63 583 1285
SF17+ 8 116 31.5 1.89 66.7 17 22 64 645 1422
10 145 23.5 1.41 49.7 17 22 64 645 1422
SF22+ 8 116 41.1 2.47 87.0 22 30 65 745 1642
10 145 29.7 1.78 62.9 22 30 65 745 1642
SFD 11+-22+(50/60Hz)
SFD 11+ 8 116 9.8x2 0.59x2 20.8x2 11 15 63 625 1380
10 145 7.6x2 0.46x2 16.1x2 11 15 63 625 1380
SFD 15+ 8 116 13.4x2 0.80x2 28.4x2 15 20 64 755 1665
10 145 11.4x2 0.68x2 24.2x2 15 20 64 755 1665
SFD 22+ 8 116 19.2x2 1.21x2 42.8x2 22 30 65 840 1855
10 145 15.0x2 0.90x2 31.8x2 22 30 65 840 1855
SF SKID/TWIN
Twin version - double tank installation
SF8T 8 116 13.2 0.79 81.1 7.4 10 73 375 827
10 145 11.2 0.67 68.8 7.4 10 73 375 827

DIMENSIONS

L x W x H Outlet
mm inch
SF8+-22+
SF8+-11+ 1628x750x1230 64.1x29.5x48.4 G1"F
SF15+-22+ 1628x750x1844 64.1x29.5x48.4 G1"F
SFD 11+-22+
SFD 11+-22+ 1628x750x1844 64.1x29.5x48.4 G1"F(x2)
